Adogrout
Powder Based Expanding Medium which Counter-acts Settlement and Shrinkage in Cement Based Grout
ADOGROUT is a powder based plasticising agent and expanding medium. It is combined into a cement based grout prior to adding the hydrating water.
The expanding technology generates gas during the hydration process to counter-act normal settlement and shrinkage and leaving a slight residual overall expansion.
Expansion takes place before initial set and a built in delaying action allows time for placing and compaction.
ADOGROUT when added to a cementitious mix also provides a positive expansion to ensure permanent high bond to all contact surfaces. Improved flow properties with lower water/cement ratio leading to higher compressive strengths are achieved.
| Size (available in) |
|
|---|---|
| Coverage | 250g pack will mix with 50 Kg cement |
- Description
- Additional information
- Enquiry form
Description
Datasheet details
Date of issue: 01/02/2025
Tech Data Sheet No.: 344
Revision No.: v2
Download Adogrout Data Sheet 2025
Request Safety Sheet
Adogrout is on admixture in powder form that includes an expanding medium and plasticising agent The expanding medium generates gas during the hydration process counteracting normal settlement and shrinkage and leaving a slight overall expansion. Expansion takes place before initial set and a built in delaying action allows time for placing and compaction.
• A positive expansion to ensure permanent high bond to all contact surfaces
• Improved flow properties with lower water: cement ratios
• High compressive strengths
• A homogeneous mix free from bleeding and segregation
• Improved resistance to frost
Use
To 50 kilogrammes of Portland cement use 1 carton of Adogrout. The cement or cement and aggregates should be thoroughly mixed dry together with Adogrout. The gauging water should then be added to obtain the required consistency, keeping the mix as dry as possible, consistent with placing conditions. After mixing for a minimum of 3 minutes, material should be placed as soon as possible.
Adogrout reacts only with the cement paste in the matrix, therefore when using with normal concrete, such as a 1:2:4 mix the use of Adogrout should be doubled.
Adogrout is completely non hazardous; it is suitable for use with all Portland cements but should not be used with High Alumina Cement
Suggested Mixes
| For Pumping Grouts for Ducts etc | For gravity fed grouts (grouting machine beds, station bases bridge bearings etc) |
| 50 kilos Portland Cement | 50 kilos Portland Cement |
| 23 litres water | 50 kilos clean washed sharp sand |
| 1 container Adogrout | 23 litres water (inclusive of sand moisture content) |
| Yield: approx. 37 litres | 1 container Adogrout
Yield: approx. 75 litres |
The water contents shown should be treated as approximate only and mix should be kept as dry as possible consistent with placing conditions
Store in dry conditions and keep the container sealed when not in use.
When stored correctly, the shelf life is 12 months unopened
Adogrout is manufactured by Adomast Manufacturing Ltd and shall be applied strictly in accordance with the manufacturers instructions. For specific advice regarding any aspect of this product please consult our Technical Department
ADOGROUT is a fine powder dispersion and therefore contact with skin and eyes should be avoided. If contact with skin should occur wash affected area well. Should material enter eyes irrigate thoroughly with clean water and if discomfort continues seek medical advice without delay. Refer to separate ADOGROUT Health and Safety sheet.
Additional information
| Size (available in) | 250g |
|---|---|
| Coverage | 250g pack will mix with 50 Kg cement |
Related products
-

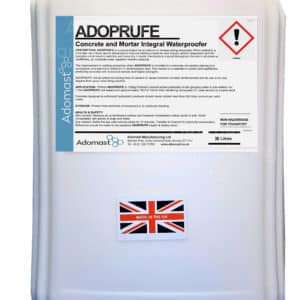

Adoprufe
Read More +Integral Concrete & Mortar Waterproofer
Adoprufe is a concentrated liquid solution of waterproofing chemicals.
When added to a concrete mix it firstly reacts physically to improve wetting properties and ensure uniform dispersion & full hydration of all cement particles.
Secondly it reacts chemically to deposit throughout the mix in all pores and capillaries an insoluble water repellent metallic stearate.
The resulting concrete is not only more dense and stronger but is also waterproof to withstand extremely high water pressures.
Size (available in) - 5l
- 20l
- 25l
- 205l
- IBC
Coverage See data sheet -

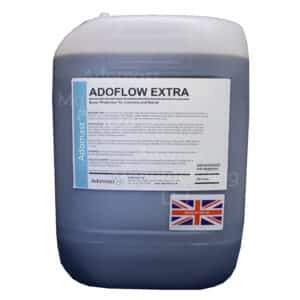

Adoflow Extra
Read More +Super Plasticiser for Concrete & Mortar
A liquid plasticiser and water reducing agent that imparts extremely high workability when added to a concrete mix.
Being a highly effective deflocculating agent it disperses cement paste into its primary particles, significantly increasing the flow characteristics of the paste.
This permits significant reduction in water content of normal workability concrete producing higher early and ultimate strengths.
Adoflow Extra also enables the concrete to achieve high compaction with minimal or no tamping and its increased flow assists with difficult pours.
Size (available in) - 5l
- 20l
- 25l
- 205l
- IBC
Coverage 1.2 Litre of ADOFLOW EXTRA per 100Kg of Portland Cement. -

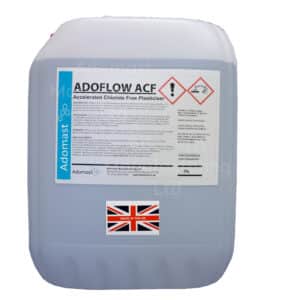

Adoflow ACF
